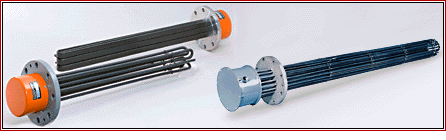

Copper Sheath: Clean water, freeze protection, hot water storage, boiler and water heaters, cooling towers, heating of solutions not corrosive to copper |
Steel Sheath: Asphalt, wax, paraffin, tar, fluid heat transfer mediums, petroleum, degreasing and solvent oils, fuel oils, machine oils, alcohol |
Stainless Steel Sheath: Process water, soap and detergent solutions, soluble cutting oils, demineralized or deionized water (passivation recommended) |
Incoloy Sheath: Solution water, corrosive solutions, air, gas, steam super heating |
Flange Size | Standard No. of Tubular Elements | Can Be Increased To: | Number of Mighty-Blade Elements |
3 | 3 | 6 | -- |
4 | 6 | -- | 6 |
5 | 6 | 12 | -- |
6 | 12 | 15 | 15 |
8 | 18 | 27 | -- |
10 | 27 | 36 | -- |
12 | 36 | 48 | -- |
14 | 45 | 60 | -- |
By adding to the standard number of elements as shown, the watt
density can be lowered or the wattage increased.

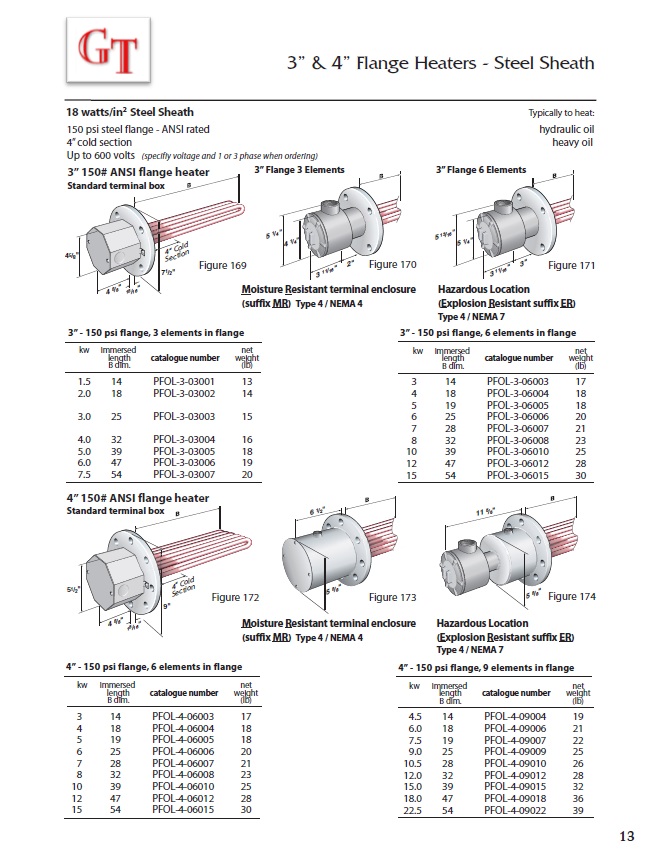

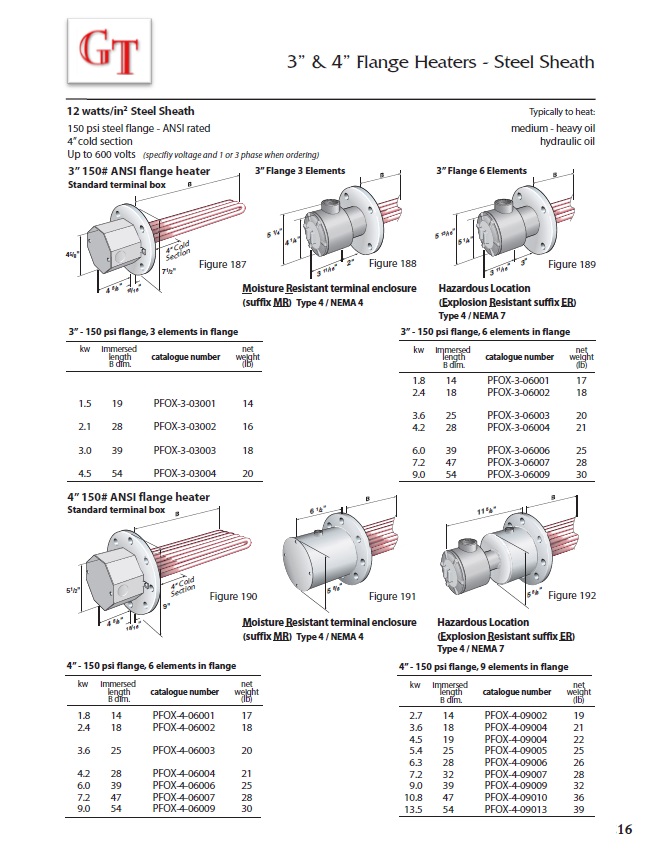

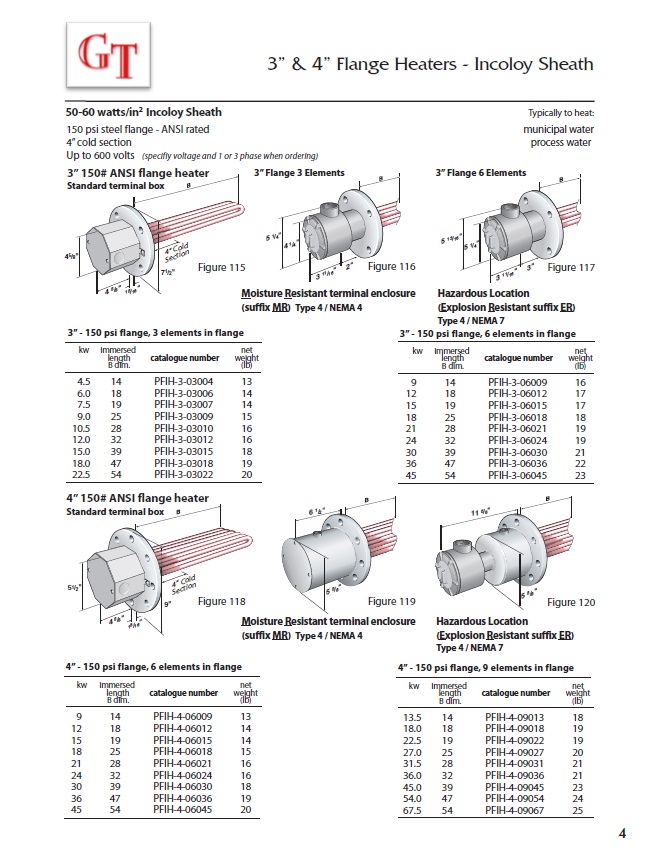

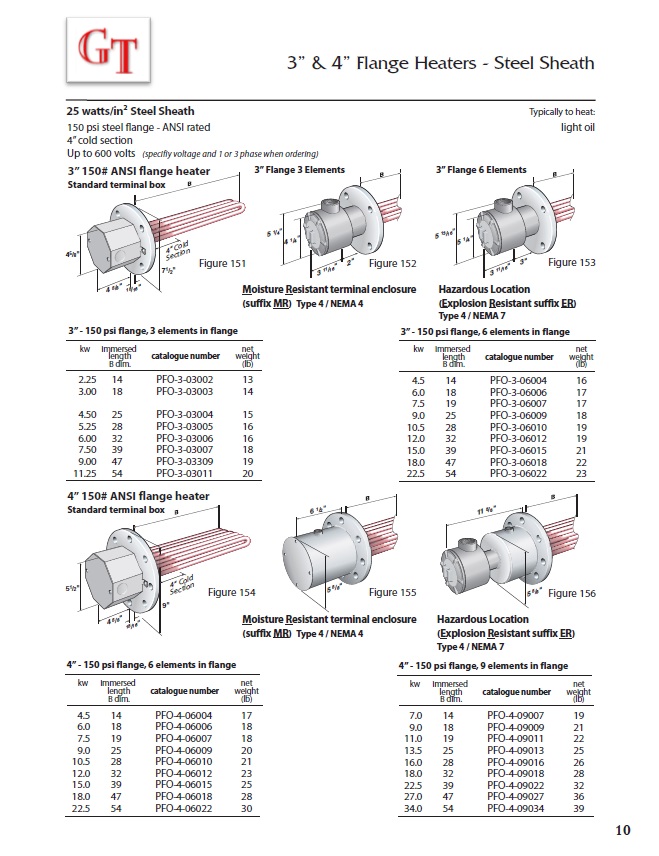

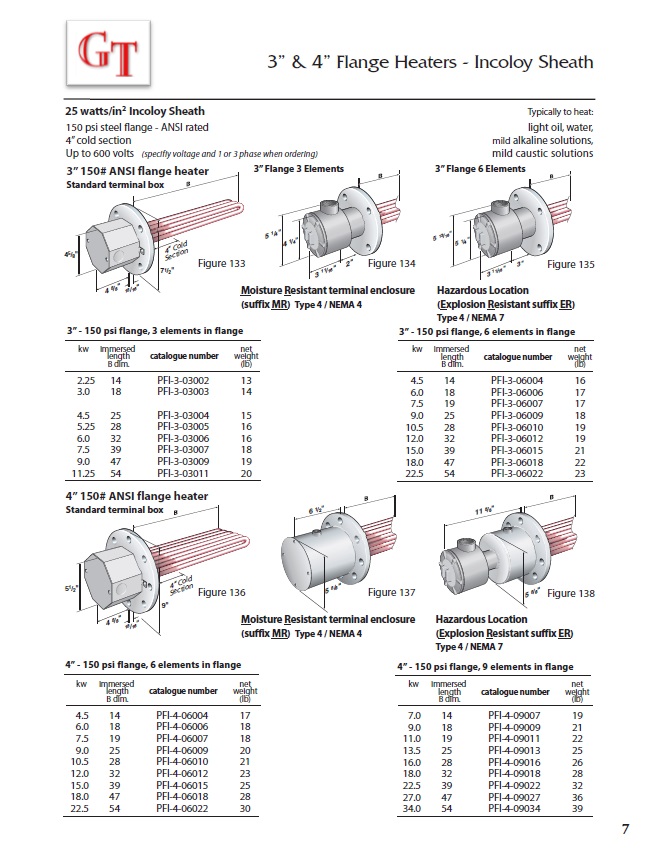

3" 150 lb. ASA FLANGE - 3 Elements | |
Fig 1: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 2: M7 Moisture and Explosion Resistant Terminal Enclosure |
4" 150 lb. ASA FLANGE - 6 Elements | |
Fig 3: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 4: M7 Moisture and Explosion Resistant Terminal Enclosure |

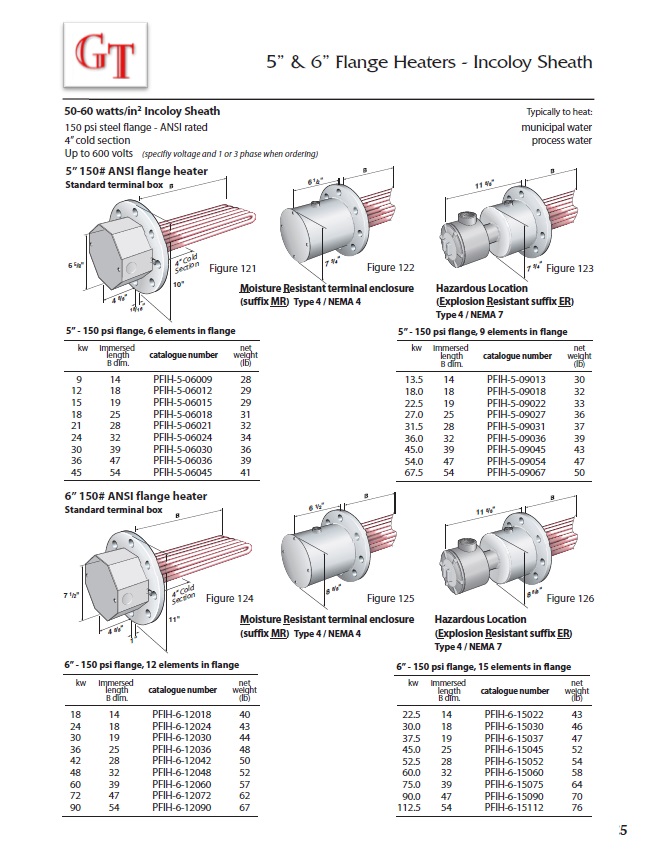

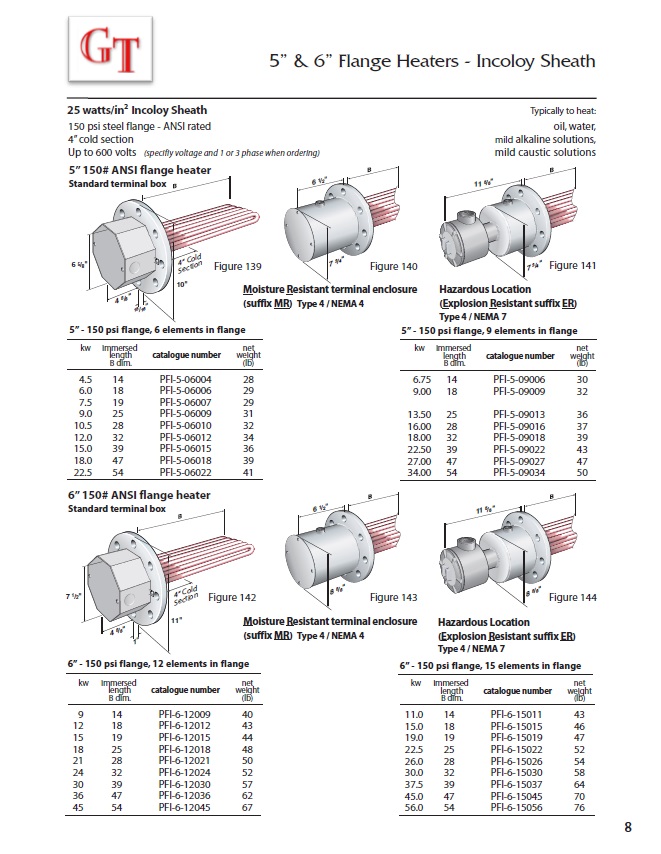

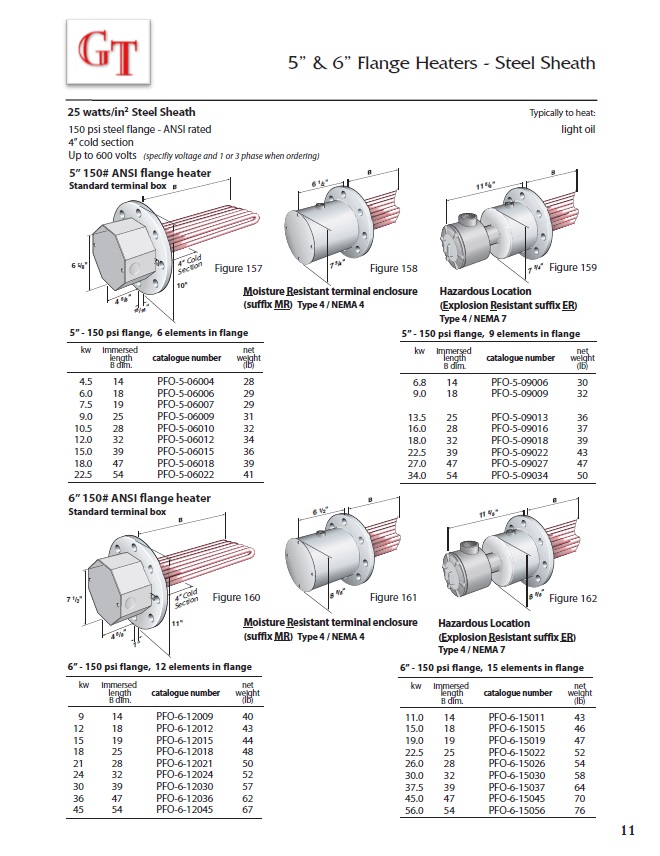

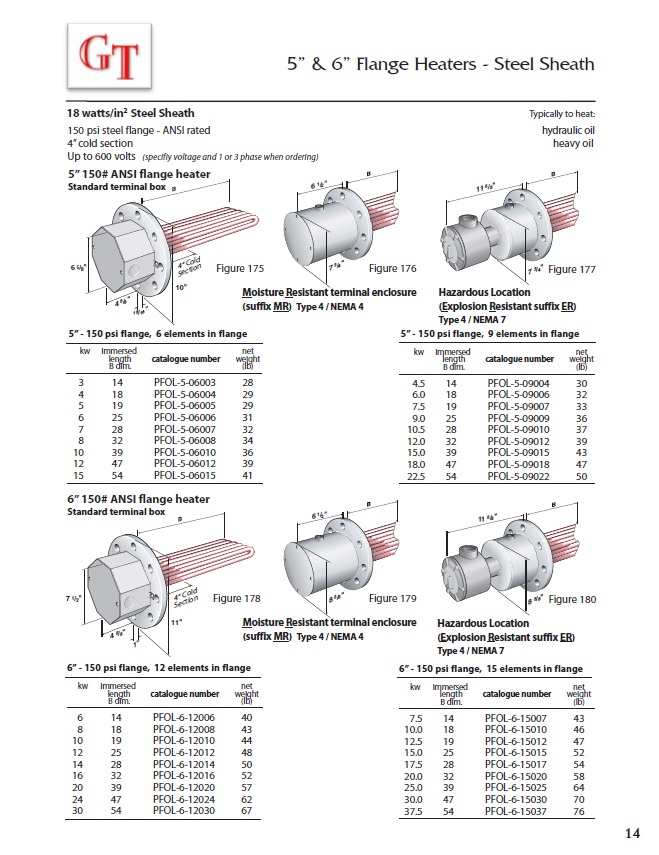

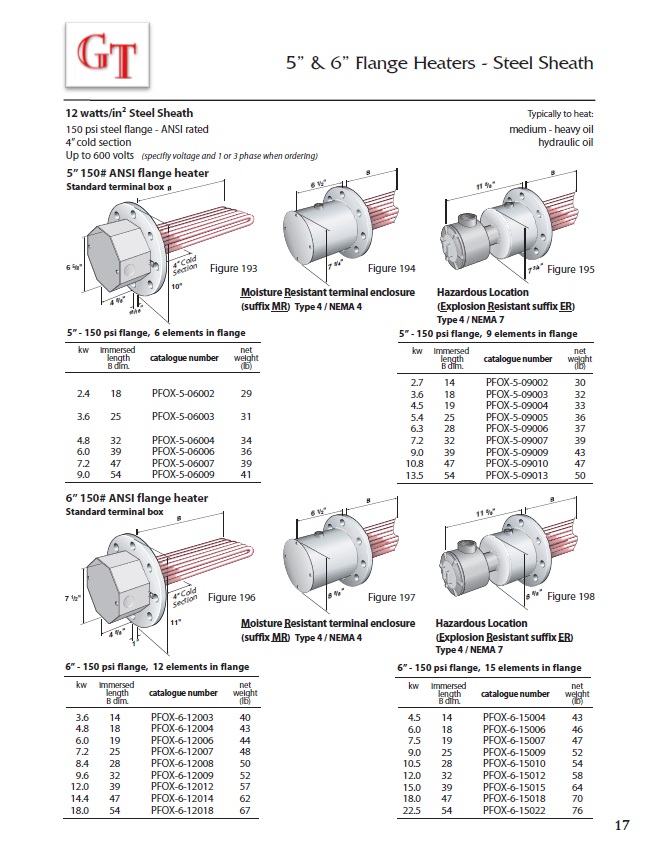

5" 150 lb. ASA FLANGE - 6 Elements | |
Fig 5: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 6: M7 Moisture and Explosion Resistant Terminal Enclosure |
6" 150 lb. ASA FLANGE - 12 Elements | |
Fig 7: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 8: M5 Moisture Resistant Terminal Enclosure |
Fig 9: M6 Explosion Resistant Terminal Enclosure |
|

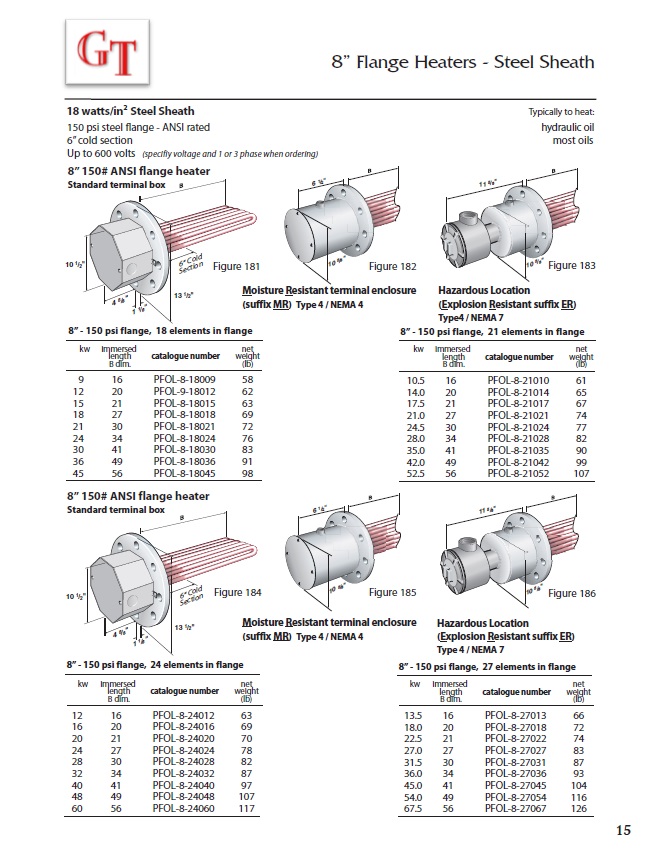

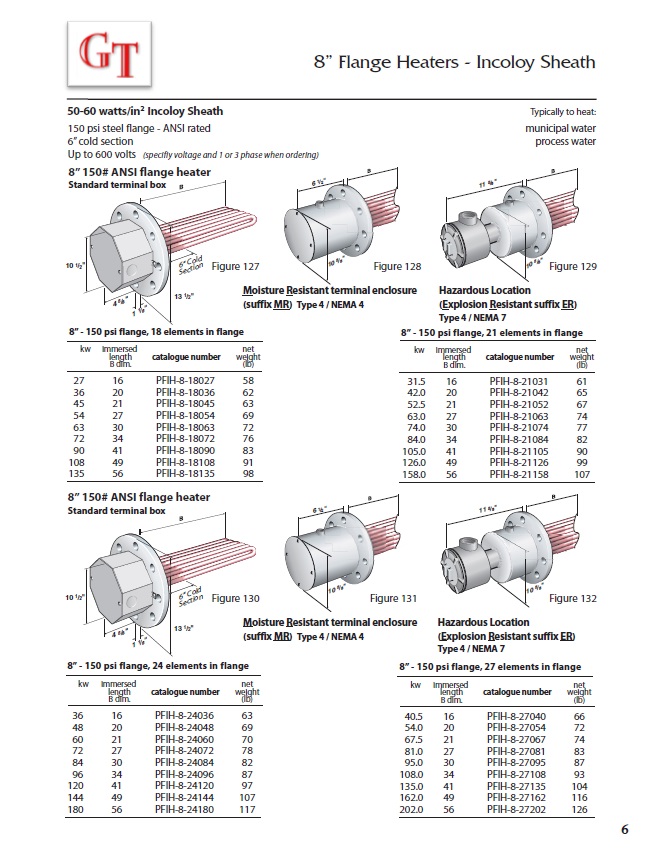

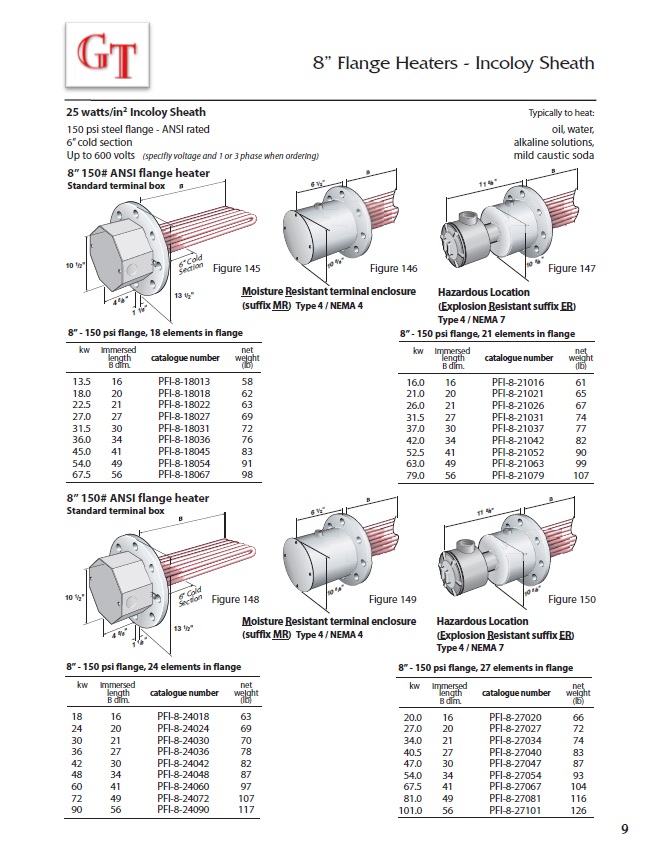

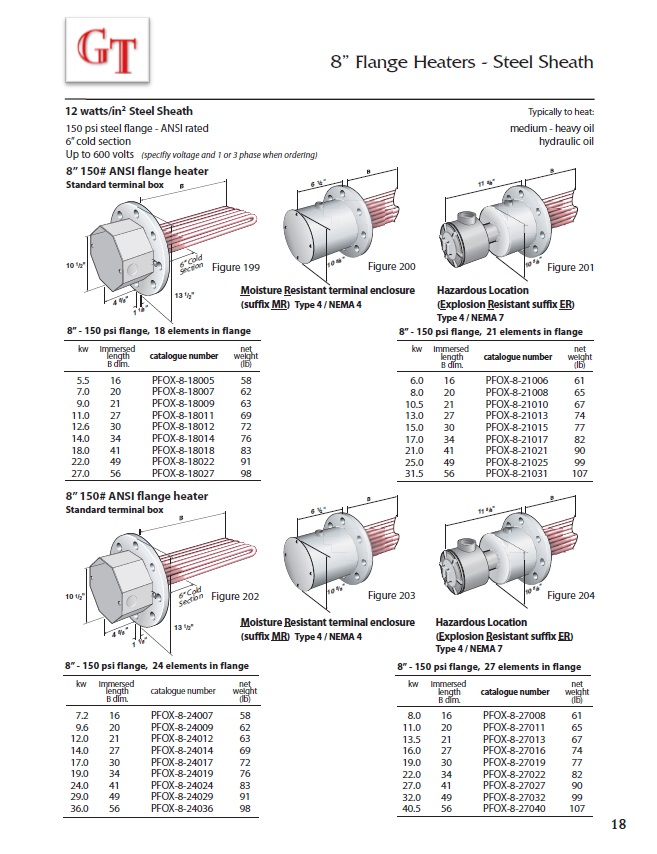

8" 150 lb. ASA FLANGE - 18 Elements | |
Fig 10: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 11: M5 Moisture Resistant Terminal Enclosure |
Fig 12: M6 Explosion Resistant Terminal Enclosure |
|

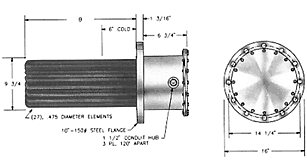

10" 150 lb. ASA FLANGE - 27 Elements | |
Fig 13: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 14: M5 Moisture Resistant Terminal Enclosure |
Fig 15: M6 Explosion Resistant Terminal Enclosure |
|

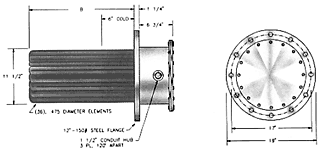

12" 150 lb. ASA FLANGE - 36 Elements | |
Fig 16: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 17: M5 Moisture Resistant Terminal Enclosure |
Fig 18: M6 Explosion Resistant Terminal Enclosure |
|

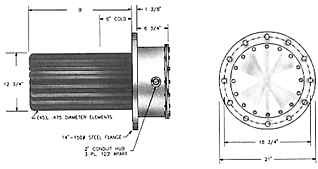

14" 150 lb. ASA FLANGE - 45 Elements | |
Fig 19: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 20: M5 Moisture Resistant Terminal Enclosure |
Fig 21: M6 Explosion Resistant Terminal Enclosure |
|
4" 150 lb. ASA FLANGE - 6 Mighty-Blade Elements | |
Fig 22: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 23: M7 Moisture and Explosion Resistant Terminal Enclosure |
6" 150 lb. ASA FLANGE - 12 Mighty-Blade Elements | |
Fig 24: M1 General Purpose Terminal Enclosure (NEMA 1) | Fig 25: M5 Moisture Resistant Terminal Enclosure |
Fig 26: M6 Explosion Resistant Terminal Enclosure |
|
Sheath Material |
Element Type |
Flange Material |
Watt Density |
Application |
Copper | Tubular | Steel |
High 45 watts/sq.in. |
Clean water, solutions not corrosive to copper |
Stainless Steel | Tubular | Steel |
High 45 watts/sq.in. |
Process water, detergent solutions, soluble cutting oils |
Incoloy | Tubular |
Steel and Stainless Steel |
High 45 watts/sq.in. |
Solution water, potable water |
Incoloy | Mighty-Blade | Stainless Steel |
High 45&90 watts/sq.in. |
Clean and potable water, Solution water |
Incoloy | Mighty-Blade | Stainless Steel |
Medium 30 watts/sq.in. |
Cooking oil, Ethylene glycol |
Incoloy | Mighty-Blade | Stainless Steel |
Medium 23 watts/sq.in. |
Corrosive solutions, Heat transfer liquids, Degreasing solutions |
Stainless Steel | Tubular | Steel |
Medium 22 watts/sq.in. |
Mild corrosive solutions, Process air <1100°F sheath temperature |
Incoloy | Tubular | Steel |
Medium 22 watts/sq.in. |
Corrosive solutions, Process air <1500°F sheath temperature |
Steel | Tubular | Steel |
Medium 22 watts/sq.in. |
Lightweight oil, degreasing or solvent oils |
Incoloy | Tubular | Stainless Steel |
Medium 15 watts/sq.in. |
Severe corrosive solutions |
Incoloy | Mighty-Blade | Stainless Steel |
Medium 15 watts/sq.in. |
Corrosive solutions, Medium weight oil, liquid parrafin |
Steel | Tubular | Steel |
Low 11&13 watts/sq.in. |
Medium weight oil, fuel oil |
Incoloy | Mighty-Blade | Stainless Steel |
Low 6 watts/sq.in. |
Heavy weight oil, asphalt |
Steel | Tubular | Steel |
Low 6.5 watts/sq.in. |
Heavy weight oil, asphalt |
