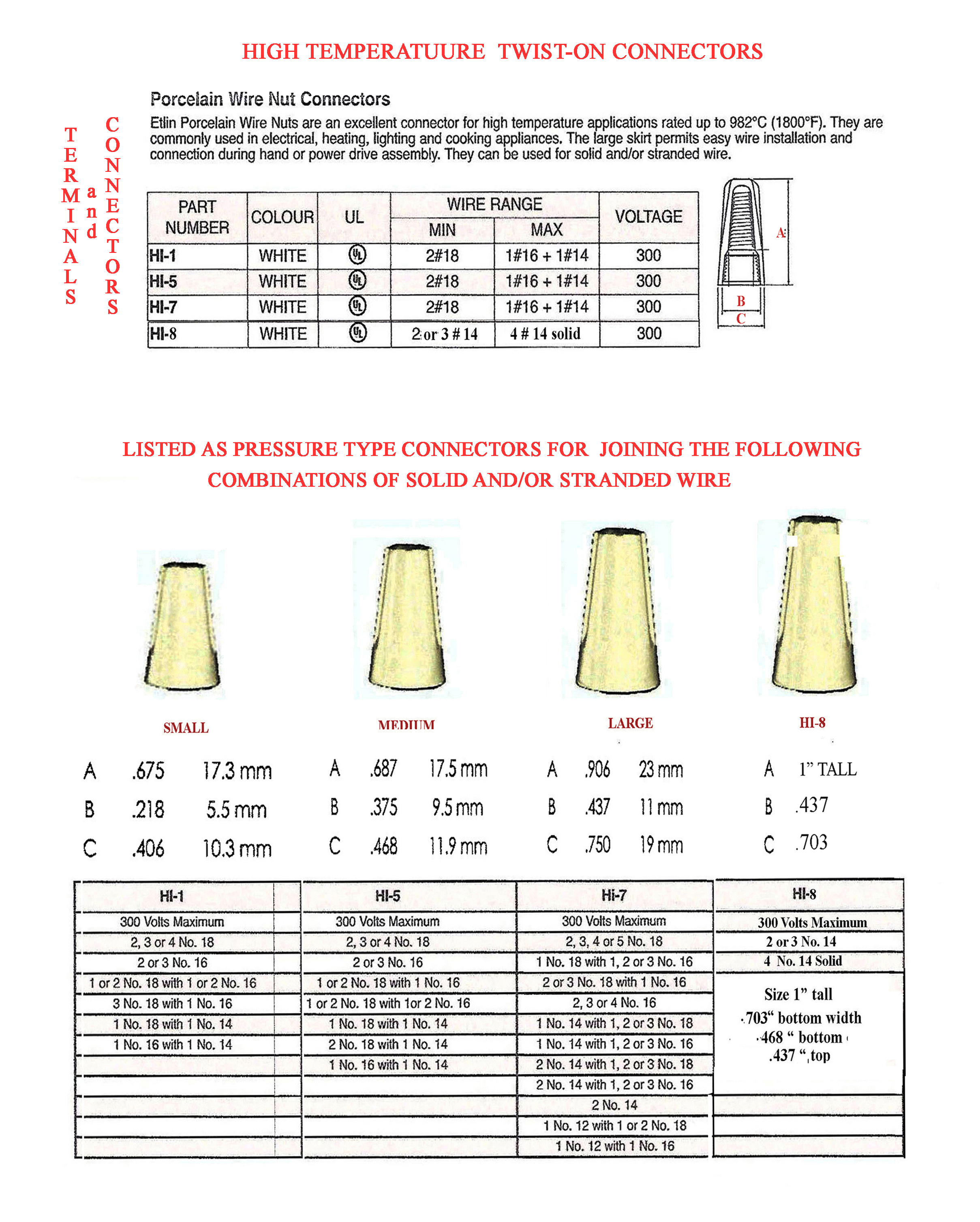

Twist-On Connectors
Hi-Temp Bus Bar
Alloy bus bar is perforated to fit screw terminals of most heaters. Carries 35 amps at 300°F, measures approximately 1/32" thick x 1/2" wide.
Fiber Glass Electrical Tape Designed for high temperature services, this superior pres- sure sensitive adhesive tape consists of fiber glass cloth impregnated with thermosetting silicone. Its remarkable prop- erties far exceed those of normal plastic or friction type electrical tapes. Thickness is 7 mils, will function well to at least 350°F, Spool size: 1/2" x 36 yards.
Monel Lugs Pure Monel Alloy, Extremely Heavy Duty Designed for high temperature services to 1900°F. Will accept up to 10 gauge wire. Hole for #12 screw fits terminals of cartridge heaters, band heaters, immersion heaters, etc. Construction is such that lug has excellent mechanical strength and conductivity. Far superior to nickel plated copper lugs for heater service.
Flexible Armor Cable Used over leads in areas where more protection is necessary. Stainless steel square lock construction. Available in 3/8" and 1/2" O.D.
Terminal Cover
Ceramic terminal cover fits Fast Heat size 10-32 or 10-24 threaded terminals. Specify thread size.

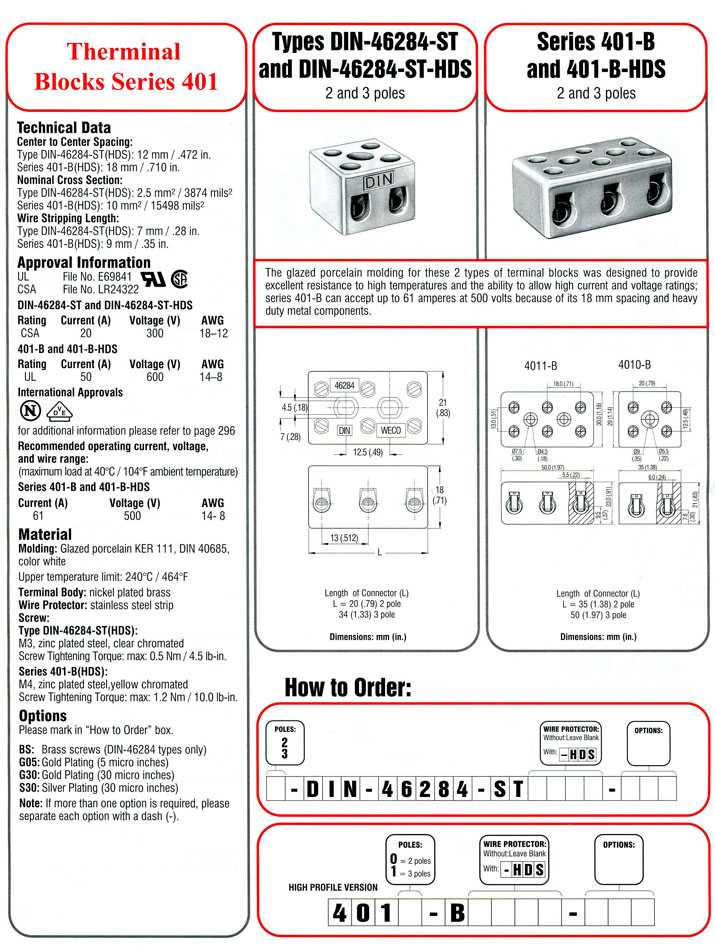

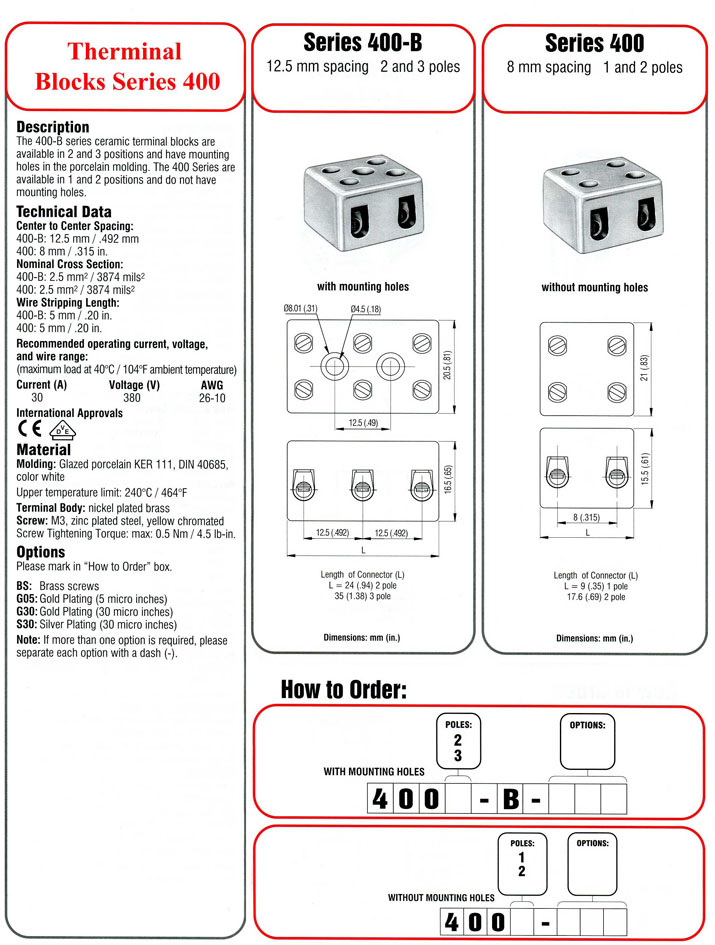

Stainless steel crimps 910 0090 3 x 0.2 x 12 mm 910 0100 4 x 0.5 x 12 mmTerminal Blocks
