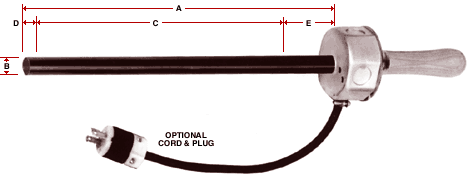

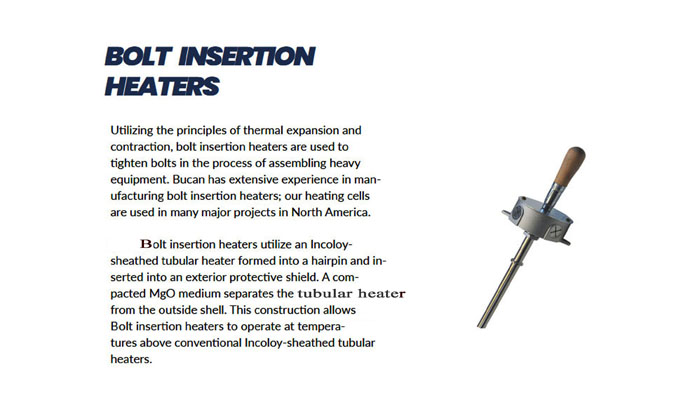

Designed primarily to pre-heat large,
drilled holding bolts or studs. The Bolt Heater is used in
the assembly or servicing of hydraulic presses, die blocks,
steam or pressure vessels, turbines or other equipment where
a high concentration of heat is needed to expand, then
wrench tighten tie rods. The parts cool and contract,
resulting in the nut being drawn even tighter
Swaged
construction for long life
Insulated
wooden handle
Octagon
outlet box
Ground
connection in box
Three
conductor cord and plug assembly available
Specify
other wattage or voltage rating
Other
diameters available: .460, .553, .580, .660, .710, .730,
.781, .855, .900, .980, 1.062, 1.20 or 1.24.
Watts |
Catalog
Number |
Diam.
B |
Length
A |
Heated Length
C |
Length
D |
Length
E |
1000
1500
2000
3000 |
BHS-719
BHS-725
BHS-731
BHS-743 |
.434"
.434"
.434"
.434" |
19"
25"
31"
43" |
l4-7/8"
20-7/8"
25-7/8"
37-7/8" |
1-1/8" |
3"
3"
4"
4" |
1250
1900
2500
3800
5000 |
BHS-919
BHS-925
BHS-931
BHS-943
BHS-955 |
.562 "
.562 "
.562 "
.562 "
.562 " |
19"
25"
31"
43"
55" |
l4-7/8"
20-7/8"
25-7/8"
37-7/8"
49-7/8" |
1-1/8" |
3"
3"
4"
4"
4" |
1500
2300
3100
4600
6000
7500 |
BHS-1119
BHS-1125
BHS-1131
BHS-1143
BHS-1155
BHS-1167 |
.681"
.681"
.681"
.681"
.681"
.681" |
19"
25"
31"
43"
55"
67" |
l4-7/8"
20-7/8"
25-7/8"
37-7/8"
49-7/8"
61-3/4" |
1-1/4" |
3"
3"
4"
4"
4"
4" |
1800
2700
3600
5300
7000
8500 |
BHS-1319
BHS-1325
BHS-1331
BHS-1343
BHS-1355
BHS-1367 |
.813"
.813"
.813"
.813"
.813"
.813" |
19"
25"
31"
43"
55"
67" |
l4-7/8"
20-7/8"
25-7/8"
37-7/8"
49-7/8"
61-3/4" |
1-1/4" |
3"
3"
4"
4"
4"
4" |
2100
3200
4200
6200
8000
9500 |
BHS-1522
BHS-1528
BHS-1534
BHS-1546
BHS-1558
BHS-1570 |
.932"
.932"
.932"
.932"
.932"
.932" |
22-1/4"
28-1/4"
34-1/4"
46-1/4"
58-1/4"
70-1/4" |
16-3/4"
22-3/4"
28-3/4"
39-3/4"
51-3/4"
63-3/4" |
1-1/4" |
4-1/4"
4-1/4"
4-1/4"
5-1/4"
5-1/4"
5-1/4" |
2400
3600
4800
7200
9600
11000 |
BHS-16x22
BHS-16x28
BHS-16x34
BHS-16x46
BHS-16x58
BHS-16x70 |
1.045"
1.045"
1.045"
1.045"
1.045"
1.045" |
22-1/4"
28-1/4"
34-1/4"
46-1/4"
58-1/4"
70-1/4" |
16-1/2"
22-1/2"
28-1/2"
39-1/2"
51-1/2"
63-1/2" |
1-1/2" |
4-1/4"
4-1/4"
4-1/4"
5-1/4"
5-1/4"
5-1/4" |
|
