Silicone enclosure heaters are ideal for enclosures that are exposed to very low temperatures and that contain electrical or electronic components that require freeze or condensation protection. The heating element of these units is a safe-to-operate, reliable wire-wound silicone rubber heater. These heaters are supplied either with an air sensing snap-action thermostat molded over the heater or without a thermostat. The silicone heater is vulcanized to a 1/16in thick aluminum plate that has mounting holes. Silicone enclosure heaters have Teflon insulated lead terminals. The standard rating for units that are supplied with thermostats is 600F.
Tubular Enclosure Heaters
Tubular enclosure heaters are ideal for enclosures that are exposed to very low temperatures and that contain electrical or electronic components that require freeze or condensation protection.The heating source of tubular enclosure heaters is an Incoloy sheathed 0.315in Dia. tubular element that is placed inside a stainless steel perforated shroud that protects the heater as well as prevents potential burns.
Shroud length |
Overall Length |
Width |
Height |
7.25in |
8.75in |
3.5in |
1.5in |
Catalog Number |
Volts |
watts |
TEN 1001 |
120V |
100W |
TEN 2501 |
250W |
120V |
TEN 3751 |
120V |
375W |
TEN 5001 |
120V |
500W |
Enclosure Heaters Assembly
A stainless steel tubular element
surrounded by a perforated protection and mounting bracket is designed to prevent
humidity or moisture accumulation in electrical and mechanical enclosures. These
items are also used to maintain temperatures in control cabinets within operating
ranges of electronic equipment. Typical applications are traffic signal boxes, switch
gear, cabinets, control panels and ATM's.
|

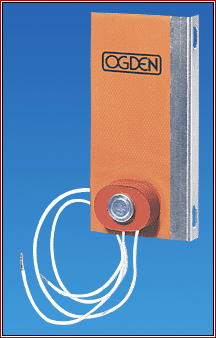

Silicone Rubber Enclosure Heaters

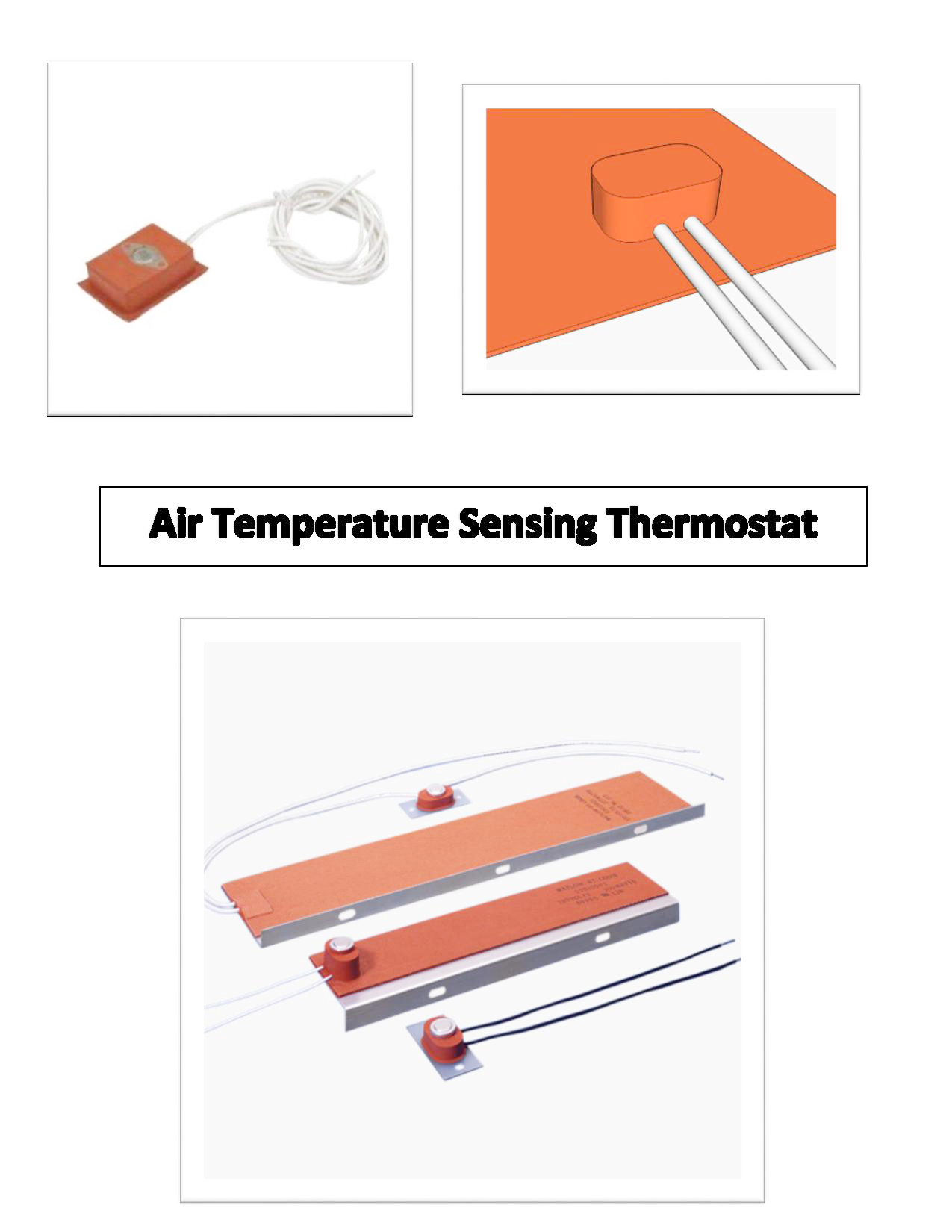

A wire wound Silicone Rubber Heater with ambient sensing thermostat and aluminum mounting plate are designed to prevent humidity and moisture accumulation in electrical and mechanical enclosures. Enclosure heaters can be supplied with thermostat separate from heater or without mounting plate.With built-in ambient sensing thermostat, the minimum width is 2". Available lengths are from 5" to 40" at 5 watts/square inch. Aluminum mounting plate is 1/2" wider than heater. Mounting slots are conveniently located. The suggested mounting is vertical with the thermostat at the bottom as shown. Available thermostat setting is 40°F (4°C) 40°/55°F (4°C/13°C). |
