Mini-Tubular with Shroud
Catalog
Number
|
Dia.
(A)
|
width
(W)
|
Watts
|
Volts
|
MTb7E10 |
3/4" |
1" |
165 |
120 |
MTb7E12 |
3/4" |
1-1/4" |
125,250,275,300 |
120,240 |
MTb8E12 |
7/8" |
1-1/4" |
250,300 |
120,240 |
MTb10E10 |
1" |
1" |
300 |
120,240 |
MTb10E30 |
1" |
3" |
450 |
240 |
MTb12E12 |
1-1/4" |
1-1/4" |
350 |
120,240 |
MTb15E15 |
1-1/2" |
1-1/2" |
225,275,375 |
120,240 |
MTb15E25 |
1-1/2" |
2-1/2" |
425,650 |
240 |
MTb15E30 |
1-1/2" |
3" |
425,650 |
240 |
Operating Characteristics
Watts/Sq. Inch
|
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
Surface Temp. In °F
|
550 |
810 |
1000 |
1130 |
1260 |
1380 |
1500 |
1525 |
1550 |
1575 |
Measured in still air at 70°F ambient, in straight length on
120 volts.
|

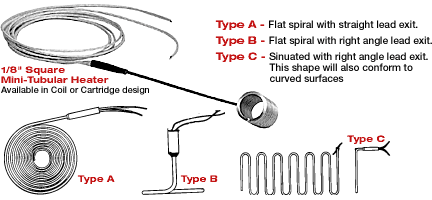

Mini-Tubular Specifications:
Standard Diameters: .040"; .062";
.093"; .125"; .188"
Square profile: .050" minimum to .160" maximum, Typically 18"
Resistance Tolerance: ±10%; ±5% on Type H @ 34" and 78"
diameter |
|

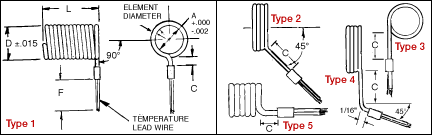

Ordering Information:
Formation or straight length­or provide drawing
Watts and Volts
Straight wound or special wound coilType D or Type E
Inside or Outside Diameter­"A" or "D" dimension
Length or width"L" or "W"
Cold tail dimension"C"
Lead Type and length "F"Standard high temperature fiberglass, Teflon
or Stainless steel braid
Thermocouple: Type J or K and lead length (F) |
|
