HD High Density Strip Heaters

The HD Strip Heater's highly compacted refractory material quickly conducts heat from the resistance wire to the sheath resulting in low internal temperatures and long heater life in the most demanding applications. precise placement of the resistance wire provides uniform sheath temperature across the width and along the entire heated length. Terminal designs allow easy installation wiring. 3/8" thickness creates a rigid sheath for secure clamping ability. The HD Strip Heater is ideally suited for many industrial and commercial applications.

Highly compressed refractory material for

outstanding performance in surface heating

or convection air heating applications

Rugged construction with high temperature

and high watt density capabilities
Sheath Material:

Rust resisting iron for sheath temperatures to 750°F

430 stainless steel for sheath temperatures to 1200°F

Consult GT for other sheath materials

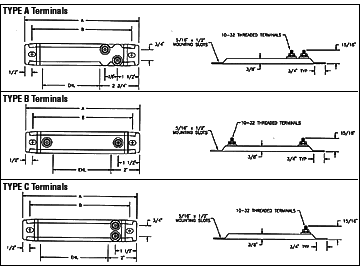

Termination:

10-32 threaded post terminals offset at one end (Type A), one terminal at each

end (Type b), or perpendicular to length at one end (Type C)

Terminal box

Ceramic terminal covers

Secondary insulators pCW-6266 and pCW-6267 are required for mounting in

air heating application or when HD Strip Heaters are wired in series on line

voltages above 480. Also, specify if a 9/16" x 11/16" mounting slot to

accommodate insulator
width: 1-1/2" ± .020"
Length: To 53-7/8" overall length (A dimension)
Thickness: 3/8" ± .02" - .035"
Maximum Voltage: 600

Finned HD Strip Heaters

Finned HD Strip Heaters feature the same highly compressed, rugged design as HD Strip Heaters with the addition of 1-3/8" X 2" fins. Fins increase the heat transfer surface area to allow higher wattages than standard HD Strip Heaters. Rust resisting iron sheath items are standard with aluminized steel fins. Stainless steel sheath items are standard with stainless steel fins. Convection heating or processes requiring a high velocity air stream are among the many possible applications for Finned HD Strip Heaters.
