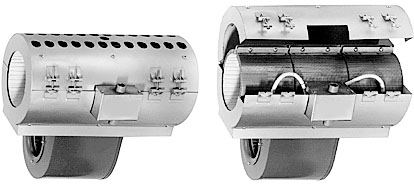

A perforated rather than insulated shroud with a cowl, plenum and blower is designed for use on plastic extrusion equipment where some processes generate excessive heat from pressure. When a predetermined temperature is exceeded, the blower will engage, cooling the process.
Mighty Miser Ceramic Band Heater
Specifications:
Resistance Tolerance: + 10%, – 5%
Wattage Tolerance: + 5%, – 10%
Cold Resistance: 12% lower than hot resistance
Maximum Volts: 600
Maximum Amperage: 25
Maximum Watt Density: Varies depending upon application considerations
Minimum Width: 1″
Minimum Width on Maxi-Miser: 3″
Width Tolerance: 1/8″
Minimum I.D.: 2″
Minimum I.D.: Double Insulated: 4″; Maxi-Insulated 6″
Maximum I.D.: 18″ full band; 36″ half band
Maximum Width: 3 – 4 x I.D. depending upon type and size
Standard Width Increments: 1/2″
Standard Gap when Tightened: 1/2″ depending upon I.D.
Thickness w/1/4″ Insulation: 5/8″
Thickness w/1/2″ Insulation: 3/4″
Thickness of Maxi-Miser: 1″
**Ceramic heaters can be manufactured in flat design for use as a strip heater, radiant heater or
without shroud for use as a furnace element.
