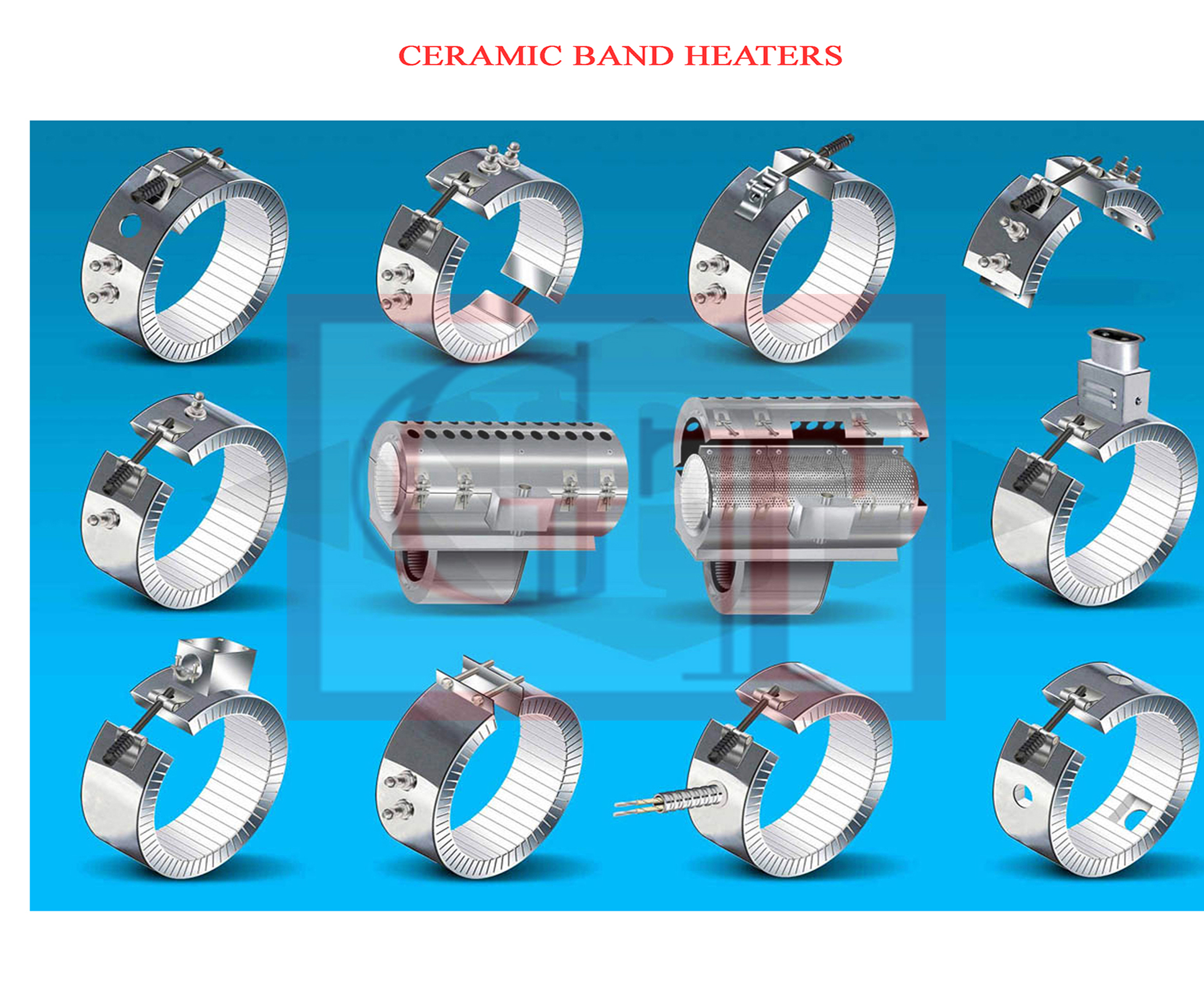

Ceramic Band Heaters (Insulated)

Typical applications are plastic molding, extrusion and molding presses. Ceramic band heaters are also used for pipe heating, heat treating and autoclaves or any application where there is a need to apply heat to a cylindrical surface.

DESIGN FEATURES:
Energy efficient, less power consumption
High sheath temperature capability up to 1600 F (Consult Gordo)
Thermally insulated
Uniform temperature
Flexible, easy to install and remove

Ceramic Fiber Insulation:

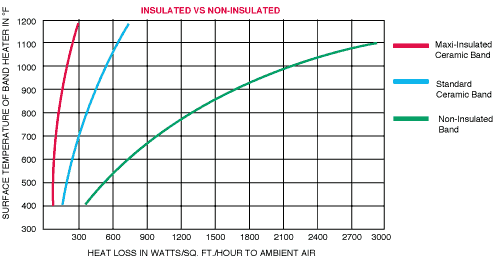

The standard insulation is 1/4" thick to improve energy conservation 25% and more over non-insulated bands. 1/2" thick insulation optional. In the Maxi-Miser design, an additional 1/2" non-compressed layer of insulation is contained in a separate, flexible chamber for even greater energy savings.

Maxi-Miser Insulation Chamber

Serrated Sheath:
Sheath material is resistant to heat and corrosion. Unique Serrations maximize flexibility, increase surface contact and provide easy opening and installation of the heater, eliminating the necessity of two piece band heaters up to 18" in diameter.

Simplified Installation, Additional Energy Conservation:
Ceramic Band Heaters can be manufactured in widths much greater than what is practical in Mica Band Heaters, eliminating heat losses between gaps in narrow band heaters and simplifying installation.

Terminations

Screw Terminals and Box Protection:

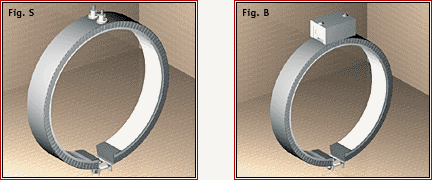

1/4-20 x 1" threaded terminals are standard as in Fig. S or in terminal box as in Fig. B. Under 2" width, terminals are parallel to circumference. Over 2", terminals are perpendicular to circumference. Standard position is 180° from gap. Specify alternate position.

Braid or Conduit Protection:

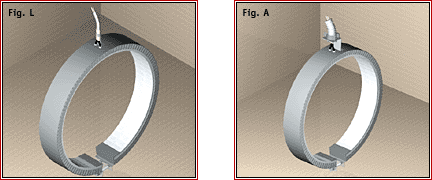

To protect leads against abrasion, braided sleeve in Fig. L. is held in place by a clip. Conduit in Fig. A is connected to stand off bracket. Standard position is 180° from gap. Specify alternate position. Standard length is 12" braid or cable with 14" leads.

Overlap Flange:

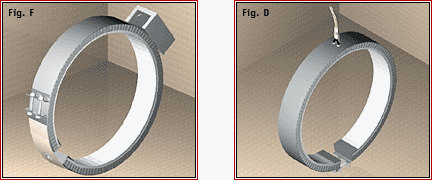

For thermocouple probe hole located through gap as per Fig. F.
Leads:
Fiberglass insulated lead wires held in place by a clip as per Fig. D. Standard position is 180° from gap. Specify alternate position.

Mounting Configurations

Fig. E: Standard Mounting method on all configurations

Fig. R: Quick Release Clamp Assembly

Additional Variations
· Dual Voltage
· 3 phase
· Ground lead or terminal
· Stainless Steel shroud
· Partial coverage
· Oversize gap
· Boxes fitted with cable or braid
· Perforated shroud without insulation

Spring Loaded Screw with Fig. E Mounting Flange.

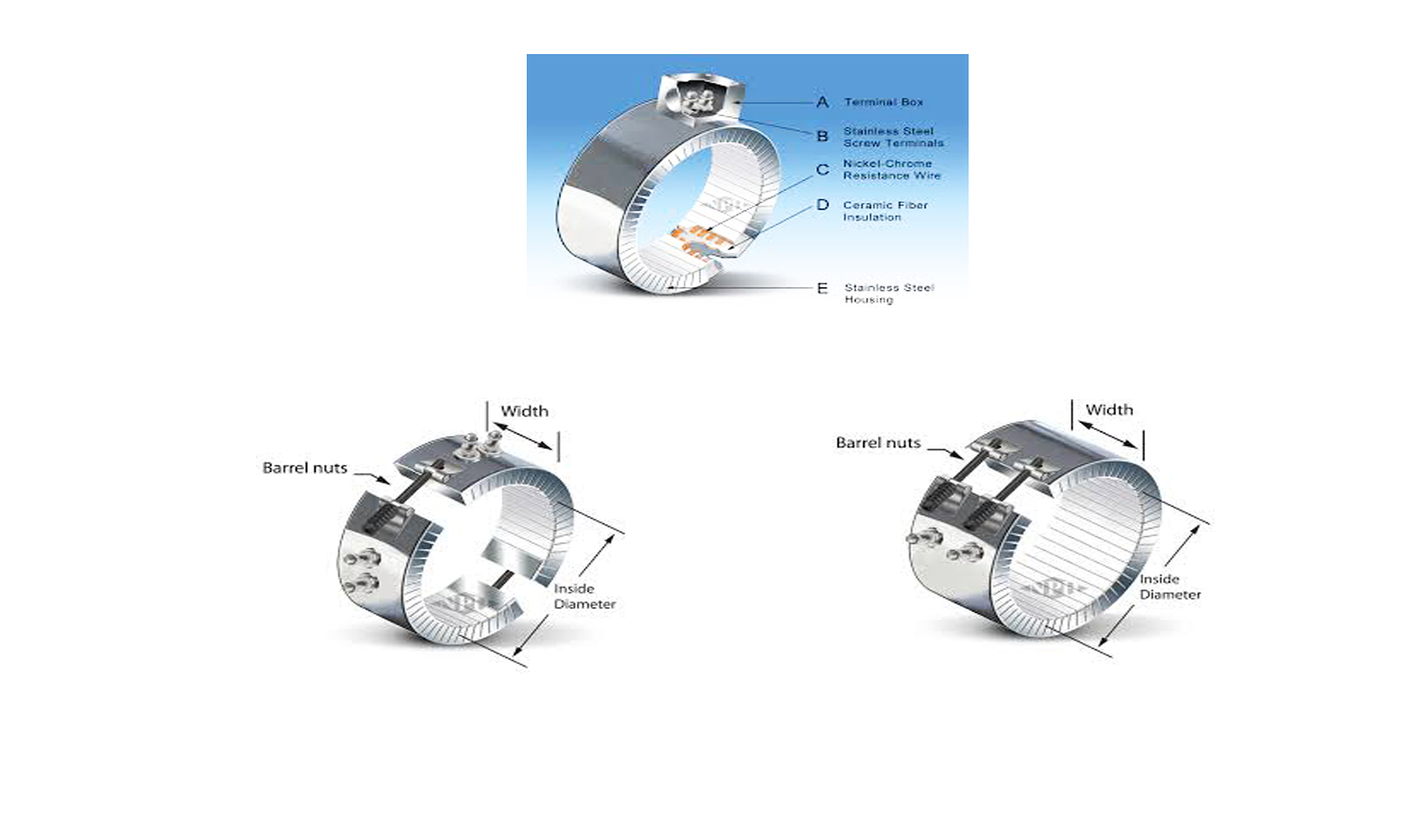

Fig. N: Quick Release Barrel Nut Assembly

DIN Connectors also available
